Product desciption:

1.This system is a vehicle assistance device that helps driver lane changing safely during driving.

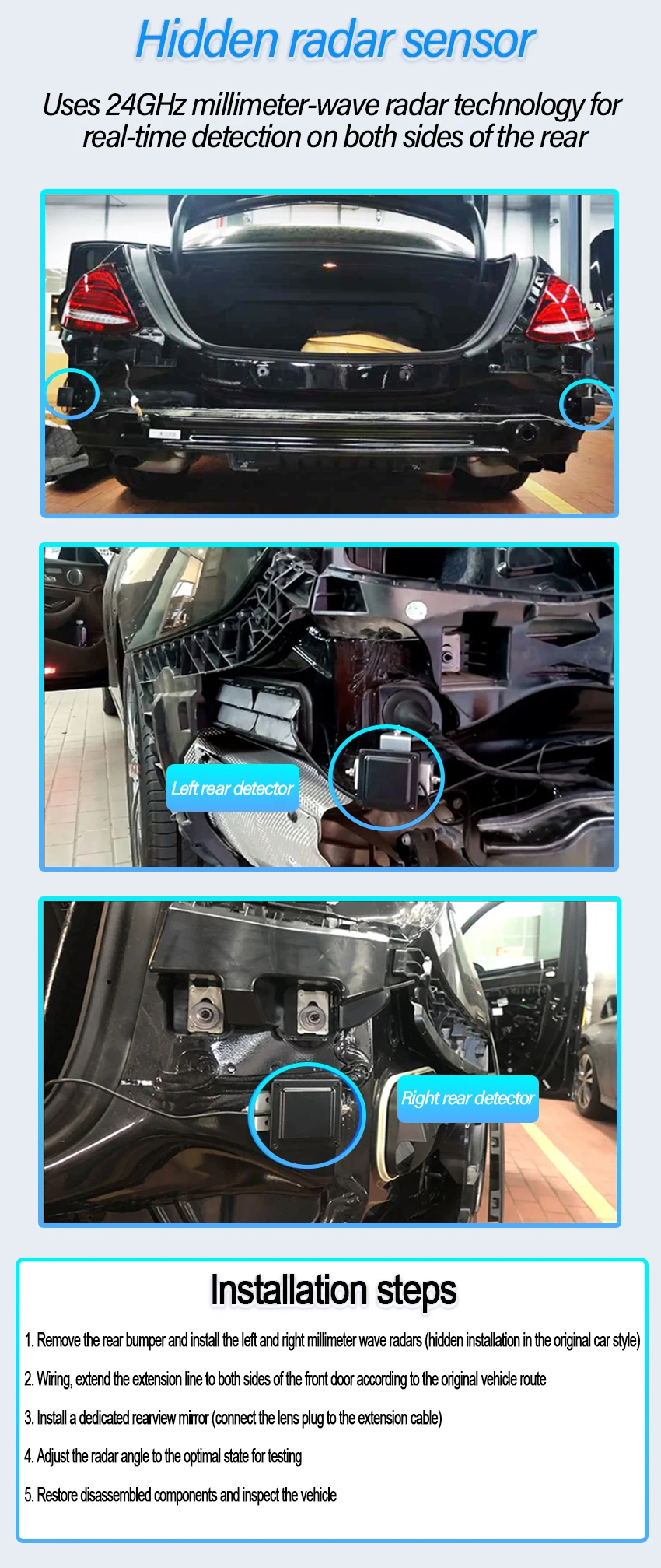

2.With the aid of 24GHz microwave sensor, probe the side / rear of the vehicle for those moving objects into the blind spot of the detection zone.

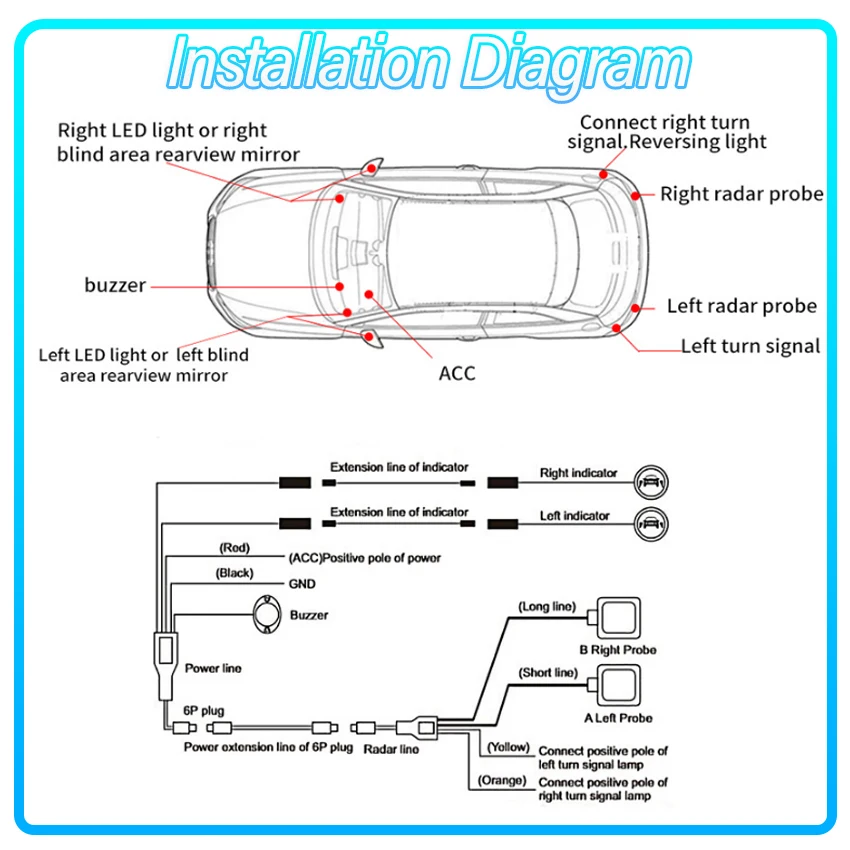

3.The system works in a set of a control box (controlled by computer), two microwave sensors, two blind region monitor (or LED light), a buzzer and the wire harness which is the perfect connection of microwave and computer.

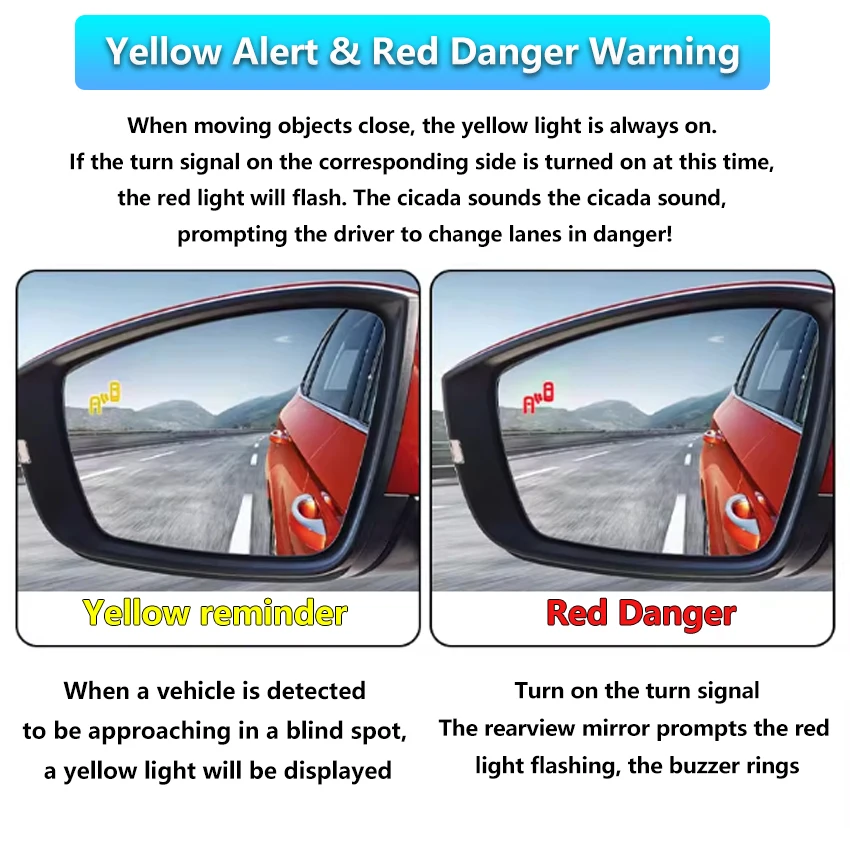

4.There is blind zone at the rear of the vehicle which is easy to endanger driving safety.! When you installed BSM into your lovely car, no matter it's day time, night time or even in the snow,you can be alerted whenever there is a moving object pop into the rear of the vehicle, with the aid of LED lighting on , blinking, buzzer sound so that the driver can be cautious when lane changing to avoid the possibility of side crash accident.

5.After the vehicle is stopped, the system delays for 30s. When there are bicycles, electric cars, motorcycles, pedestrians and other vehicles near the vehicle, the system will light up and there is a risk of opening the doors. Please confirm the safety before opening the doors.

Why install BSD blind zone assist system?

blind spots are prone to collisions when changing lanes, and blind spots may cause "self-injury" when driving in a straight line. The blind spots are the high causes of accidents and the severe weather intensifies the obstruction of vision.

Advantages of millimeter wave radar

Millimeter wave radar emphasizes the millimeter-wave radar performance of the automotive blind spot monitoring system. It has strong penetration and is not afraid of harsh environments such as rain, snow, sand and dust. It can accurately detect obstacles in the dark. Even if the weather changes, it can work stably, building a solid environmental adaptability line for driving safety, and highlighting the reliability of the system under complex working conditions.

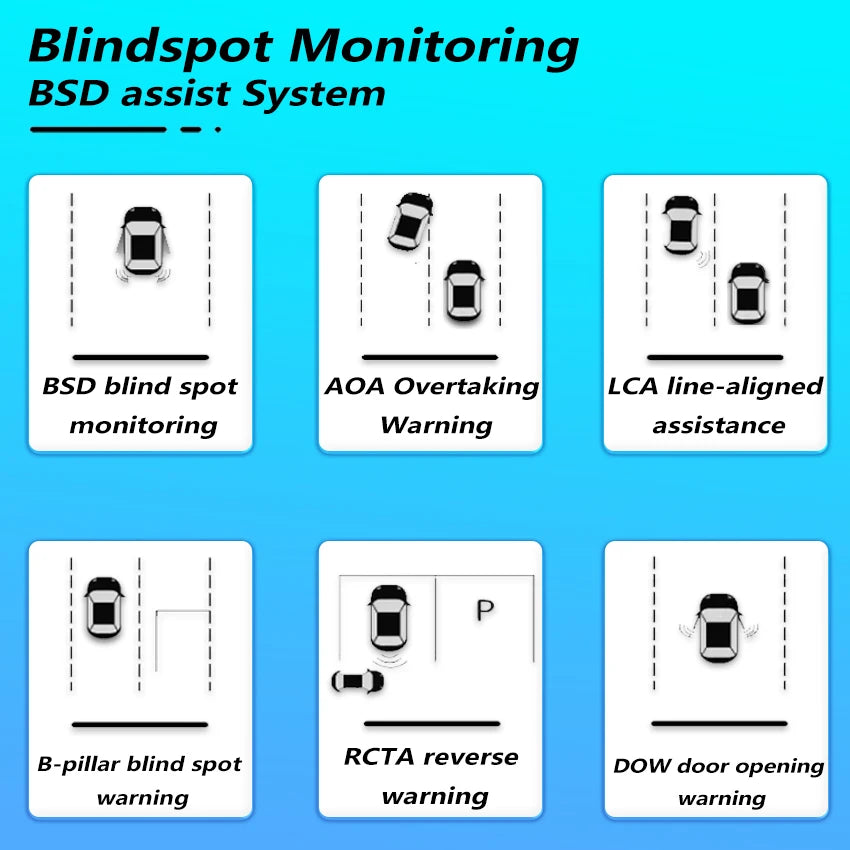

Blind spot monitoring system function display

This is a functional diagram of the automotive blind spot monitoring
1.(BSD) auxiliary system, covering six core functions: BSD blind spot monitoring, real-time scanning of the rear side of the vehicle;
2. AOA overtaking warning, detecting the risk of rapid overtaking;
3.LCA lane assistance, ensuring concurrent safety;
4.B-pillar blind spot warning, eliminating blind spots on the side of the field of vision;
5. RCTA reverse warning, monitoring vehicles coming from the rear;
6.DOW door opening warning, preventing door opening collisions, and protecting driving safety in all aspects.

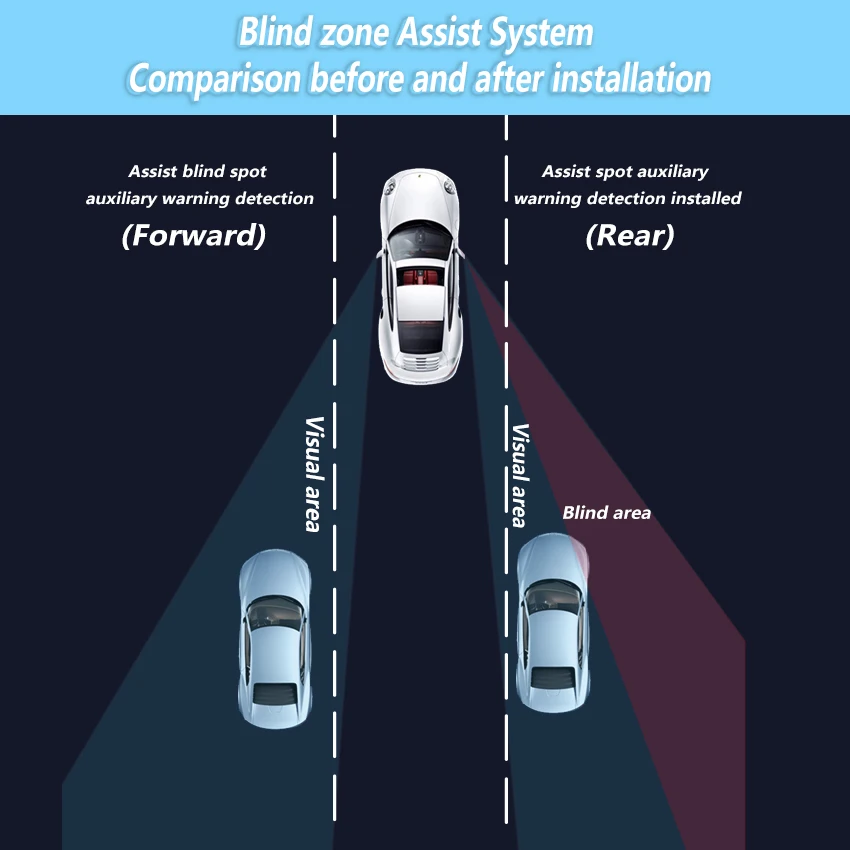

Blind zone Assist SystemComparison before and after installation

Before installation, there are visual blind spots in front and behind the vehicle; after installation, the system is used to expand the visual range and reduce blind spots, so that the perception of surrounding vehicles is more comprehensive during driving is presented intuitively, and the system can improve driving vision and reduce potential dangers.

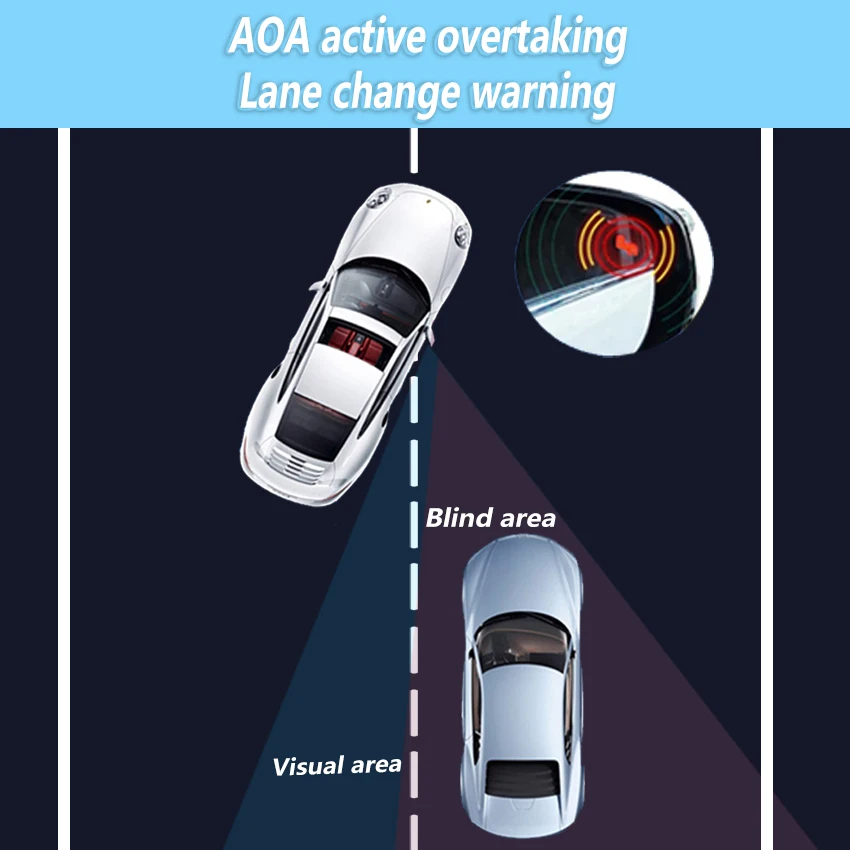

AOA active overtaking/lane change warning

This vehicle overtakes the other vehicle and enters the blind spot of this vehicle (within 87 meters of the rearview mirror facing backwards, the corresponding side rearview mirror will emit LED lights flashing to turn and change lanes, accompanied by a "beep beep" sound to remind the driver)

RCTA reverse warning

In scenarios such as parking and driving at low speed, the system can detect surrounding vehicles, assist drivers in detecting potential collision risks, and improve the perception of parking and surrounding environments.

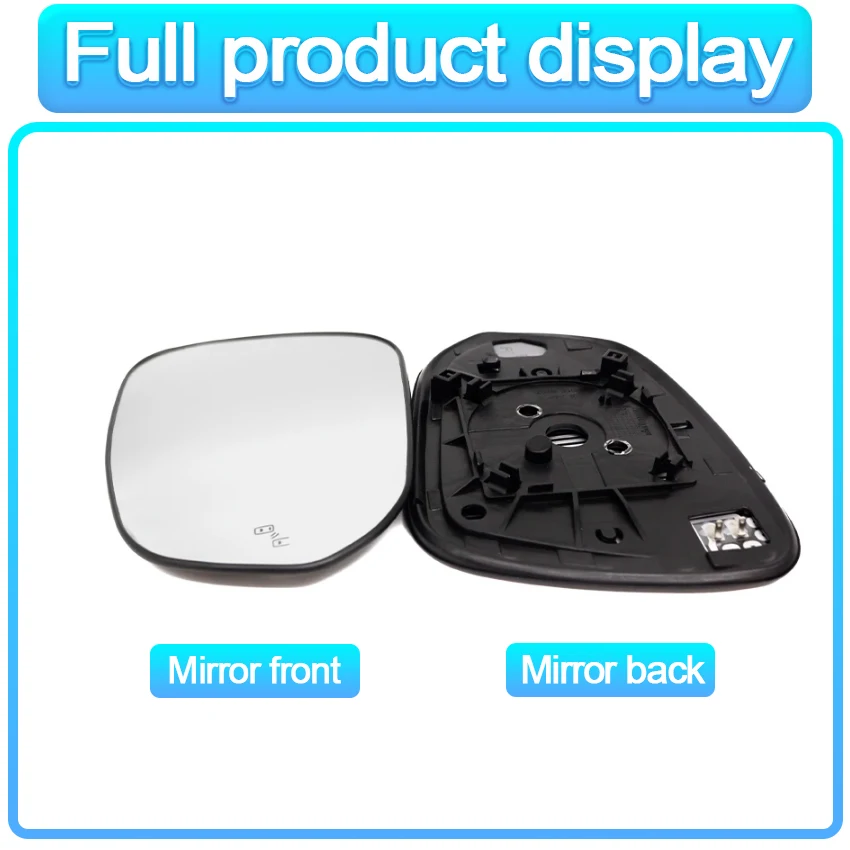

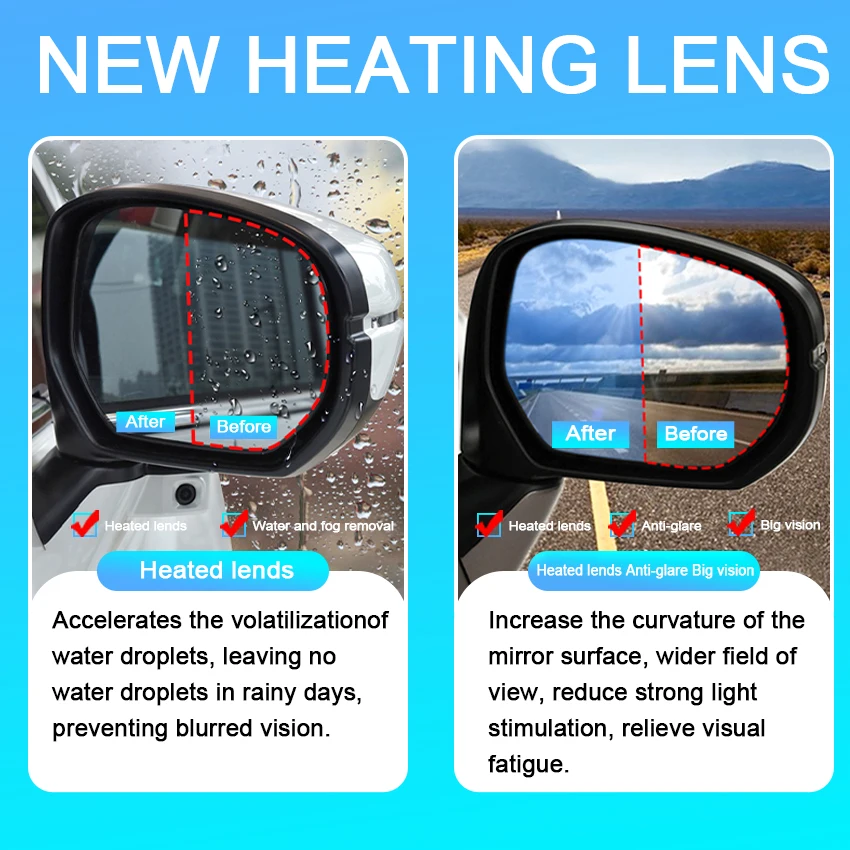

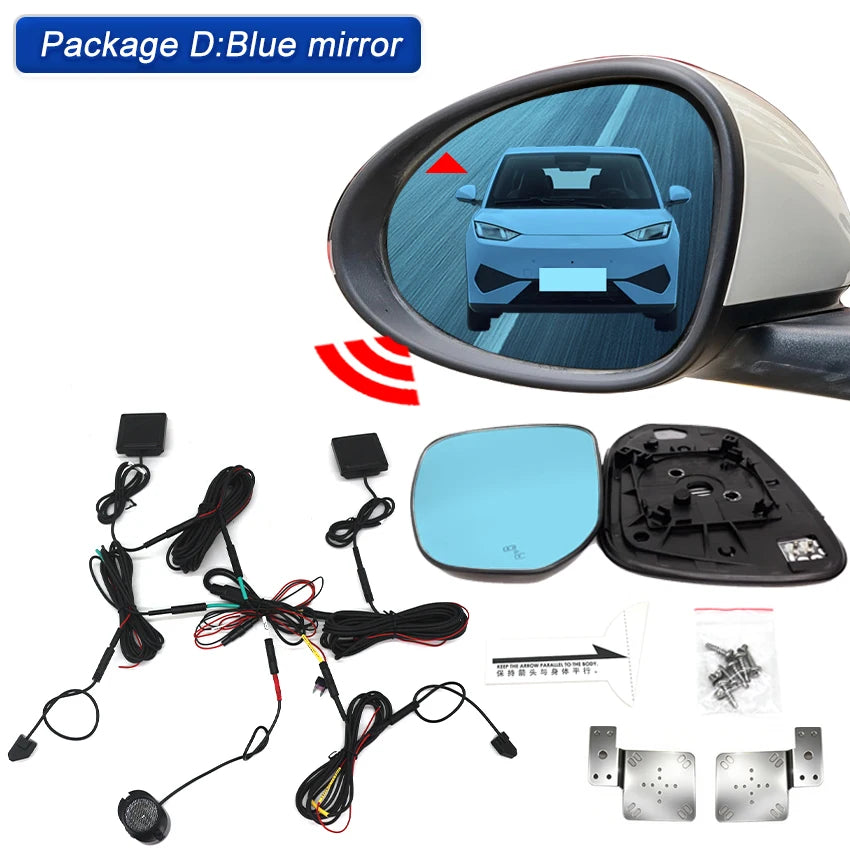

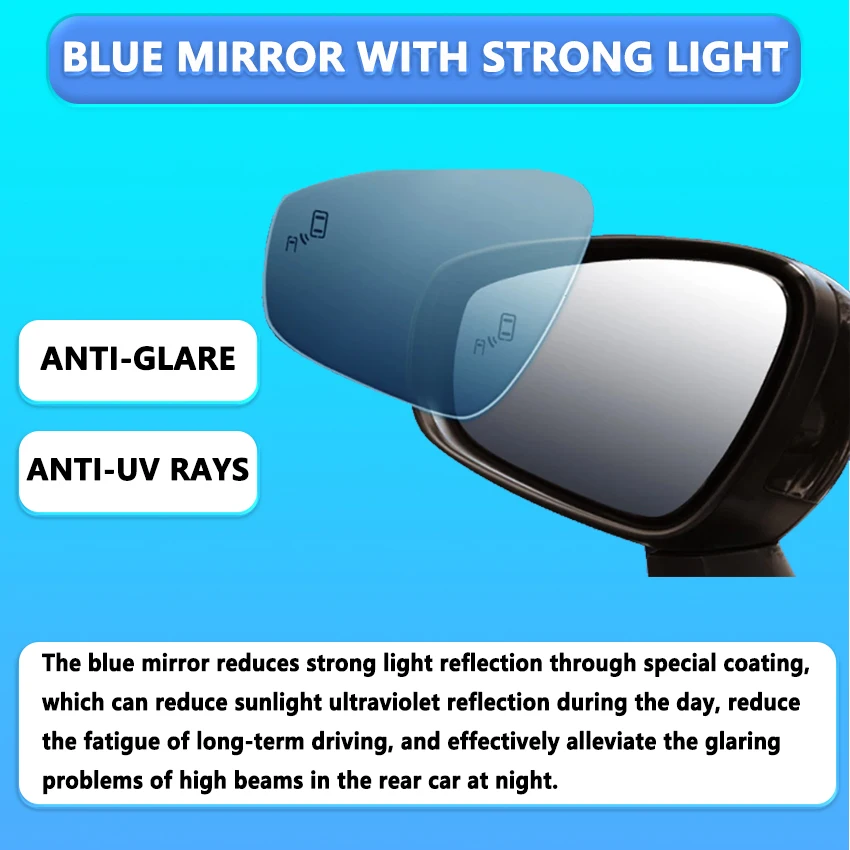

About Blue Mirror:

1.When driving at night, the lights of the rear vehicles illuminate the inner rearview mirror without strong dizziness, which ensures the safety of driving.

2.Normal car headlights are halogen bulbs, which are yellow light sources, and blue mirrors can reduce the intensity of yellow light, which can effectively reduce glare and halo, and achieve the effect of anti-glare. When driving under the bright sun for a long time in a climatic environment with bright sun, the general inscription mirror or aluminum mirror has strong reflection and will be dazzling, but the image of the blue mirror is very soft and will not be dazzling. So whether it is day or night, driving is very suitable Use blue mirror.

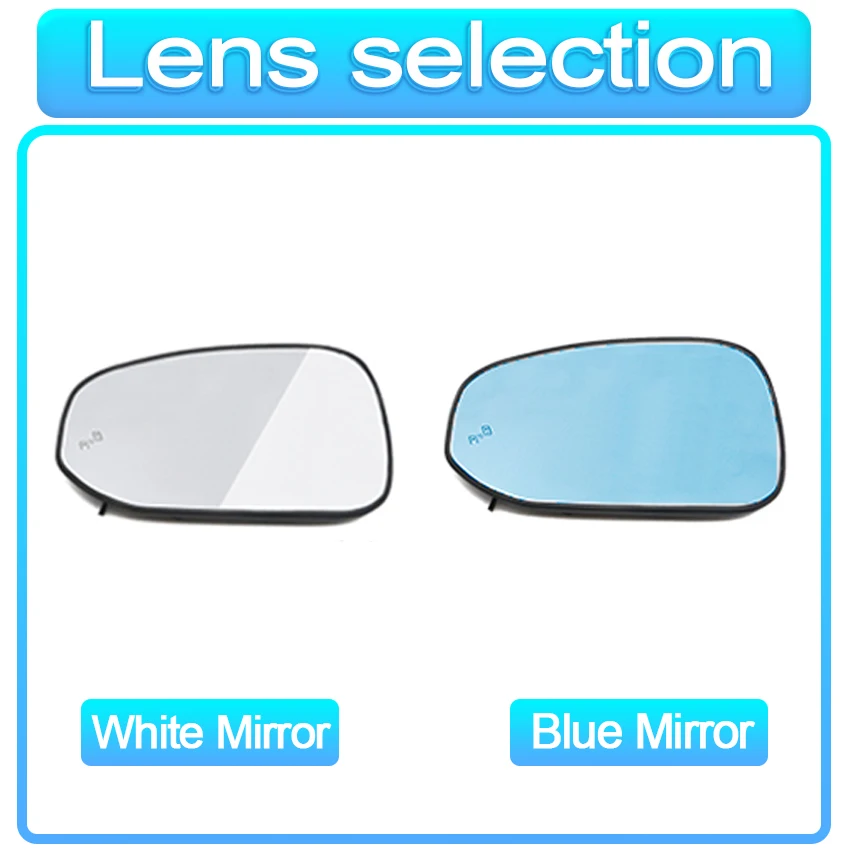

3.The production of blue mirrors will be made into concave mirrors, which will expand the field of view and reduce the blind spot area than ordinary rear-view mirrors, and also have the function of waterproof and anti-fog.

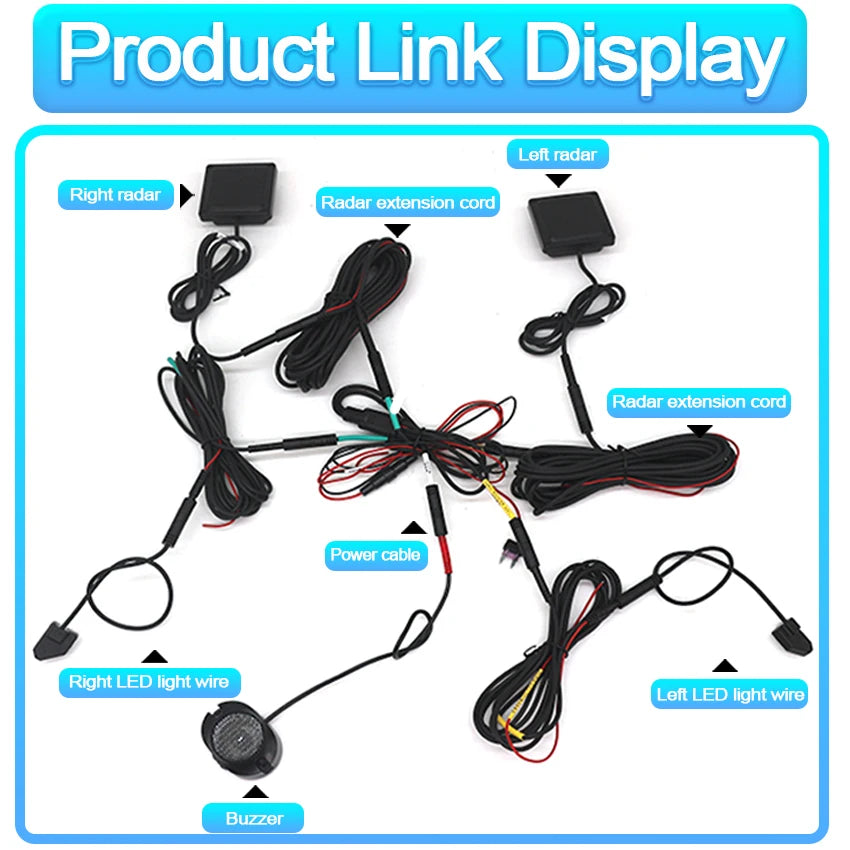

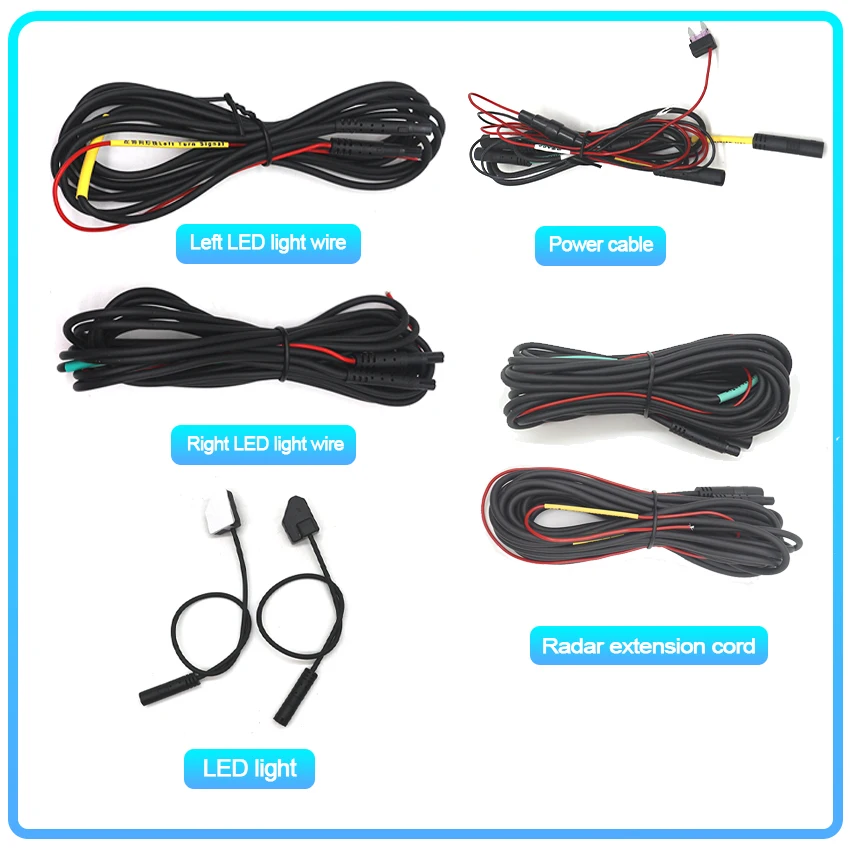

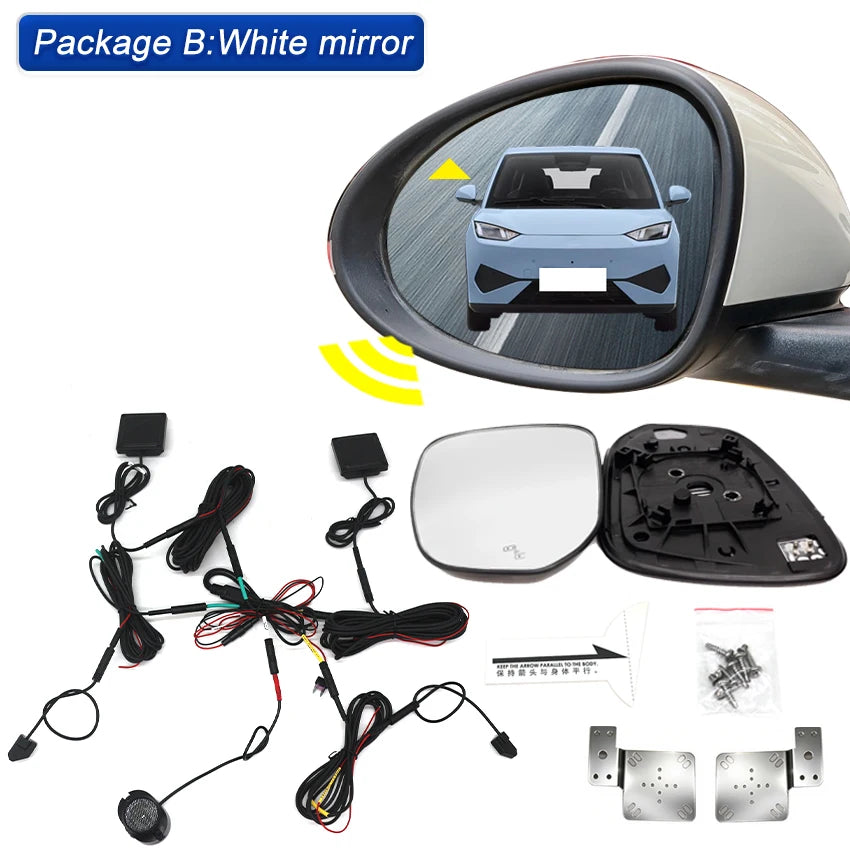

Full product display:

1)BSD host 1 PCs

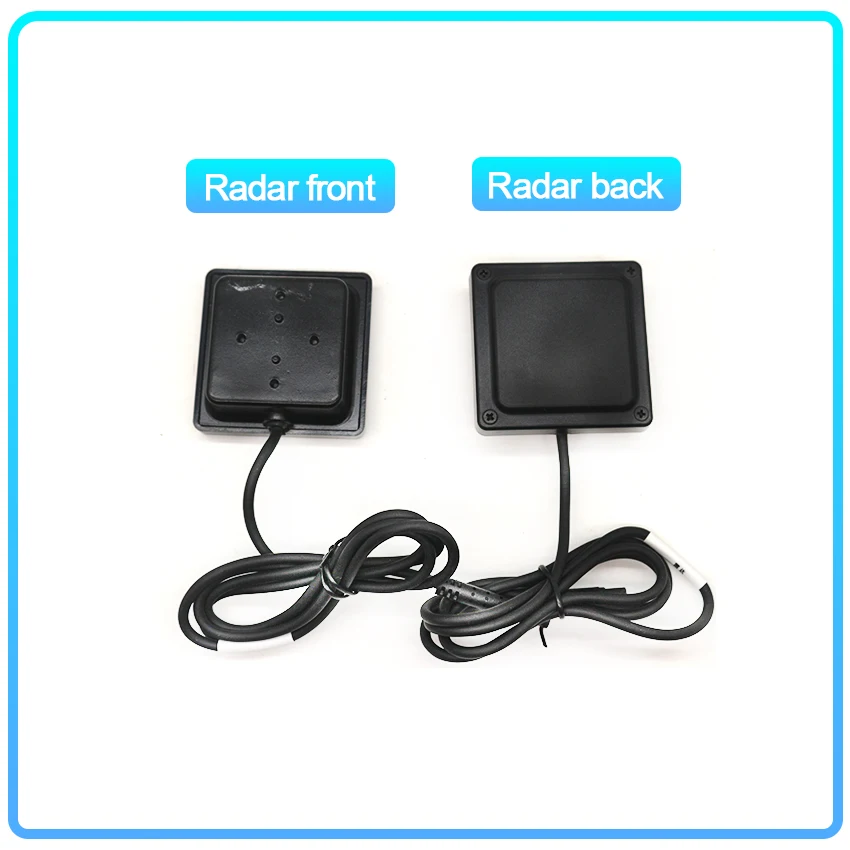

2)Sensor 2 PCs

3)LED warning light 2 pcs Optional: Special rear mirror 2 pcs

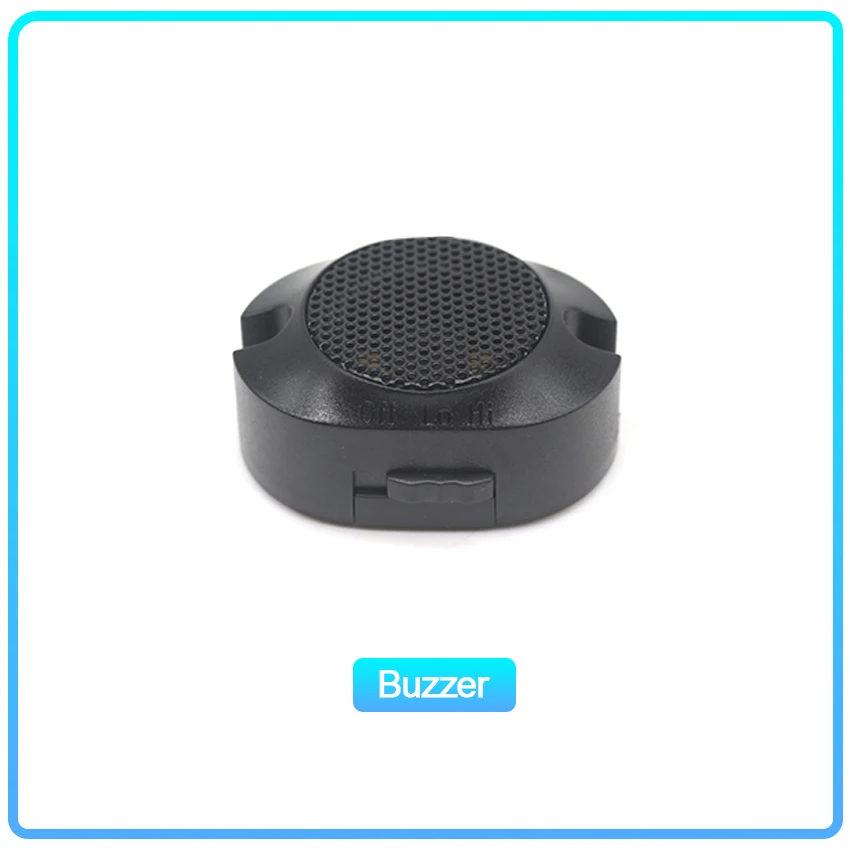

4)External buzzer 1 PCs

5)Main harness 1 PCs

6)BSD wiring harness 1 pcs

7)Extension cord 4 pcs

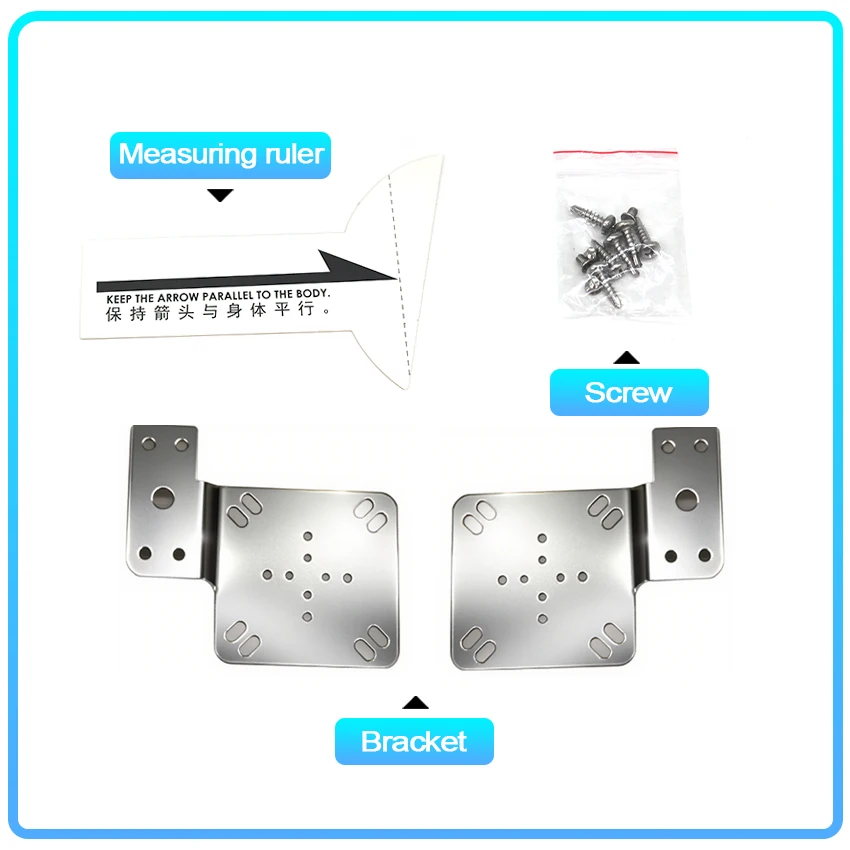

8)Fixed bracket 1 pcs

9)3M tape 4 pcs

10)Manual 1 pcs

11)Angle feet 1 pcs
